Product description
Ratings @ 0.8 PF
Voltage*¹
230/400 V
Frequency
50 Hz
COP Power*²
995 kW – 1540 kW
Duty
Baseload
Rating
Continuous

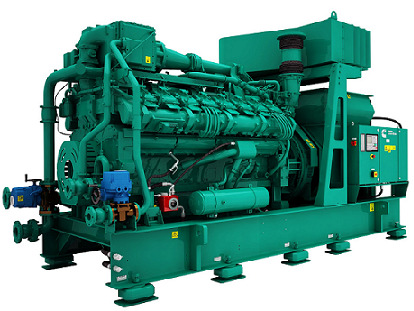

Cummins Gas Generators 995 kW – 1540kW (50 Hz) – (Natural Gas)
The above ratings represent the generating set capability guaranteed within ±3% at the reference conditions equivalent to those specified in ISO 8528/1 standard.
Notes
- The applicable voltage range is 380V to 415V for 50Hz applications. For other voltages, please consult factory.
- 995 to 1540 kW (COP power): is the maximum power available for continuous loads for unlimited running hours a year between the maintenance times recommended by the manufacturer under the environmental conditions.
Engine Technical Data
| Make & Model | Cummins QSK60 series |
|---|---|
| Engine Speed (rpm) | 1500 |
| Fuel System | Lean burn |
| Cylinder configuration | 16 V |
| Displacement (Liters) | 60.3 |
| Bore & Stroke (mm) | 159 × 190 |
| Starting voltage | 24 volt negative ground |
| Induction system | Turbocharged low temperature aftercooled |
| Cycle | 4 stroke |
| Governor | Electronic |
| Cooling method (electric pump) | Water (loose radiator) |
| Ignition system | Individual coil on plug |
| Air cleaner type | Dry replaceable element |
| Lube oil filter type(s) | Full flow and bypass filters |
| Breather | Breather filter |
The above performance data are valid as per the following specs:
- Natural Gas is methane based
- The coolant should be 50% inhibited glycol and 50% fresh water.
Alternator Technical Data
| Design | Brushless, 4 pole, revolving field |
|---|---|
| Stator | 2/3 pitch |
| Rotor | Two bearing |
| Insulation system | Class F or H see ADS (Alternator Data Sheet) for details |
| Standard temperature rise | 105 °C (221 °F) Continuous @ 40 °C (104 °F) ambient |
| Excitation system | PMG (Permanent Magnet Generator) |
| Phase rotation | A (U), B (V), C (W) |
| Alternator cooling | Direct drive centrifugal blower fan |
| AC waveform total harmonic distortion | < 5% no load to full linear load, < 3% for any single harmonic |
| Telephone influence factor (TIF) | < 50 per NEMA MG1-22.43 |
| Telephone influence factor (THF) | < 3 |
Shipping Dimensions (Open Set):
- Length: 5211 mm
- Width: 2226 mm
- Height: 2837 mm
- Weight: 16976 Kg
