Product description
Ratings @ 0.8 PF
Voltage*
230 V
Frequency*
50 Hz
Prime rating
KT 27*
27 KVA
Stand-by Rating
KT30* Max Current
29.5 KVA 110A
Ratings @ 0.8 PF
Voltage*
230 V
Frequency*
50 Hz
Prime rating
KT27*
27KVA
Stand-by Rating
KT30*
29.5KVA
Stand-by Rating
Max Current
110A

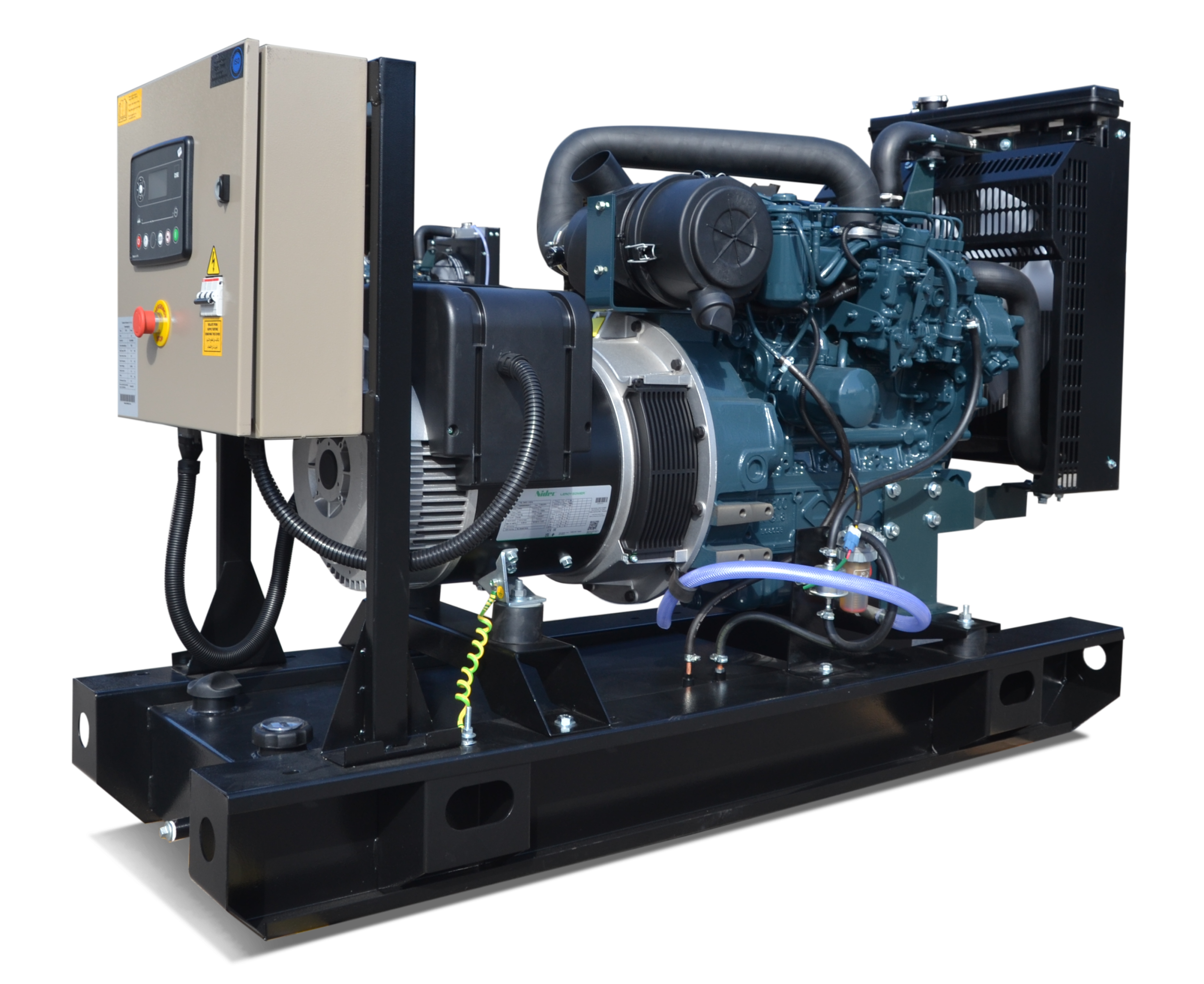

Ghaddar Generator KT27 – KT30S (1500 rpm) – 1 Phase powered by Kubota
Ratings guaranteed within ±3% at ISO 8528/1 reference conditions.
Notes
- Applicable voltage: 230 V (single-phase, 50 Hz). For other voltages, please consult factory.
- Fixed speed: 1500 rpm.
- KT27(Prime power): Variable load, unlimited hours; 80% average load factor over 24 h. 10% overload allowed 1 h / 12 h.
- KT30S (Standby power): Variable load; up to 500 h/year (300 h continuous). No overload permitted.
Engine Technical Data
| Make & Model | KUBOTA V3300-E2-BG-GDR1 |
|---|---|
| Cylinders & Arrangement | 4; vertical in-line |
| Bore & Stroke (mm) | 98 × 100 |
| Induction system | Naturally Aspirated |
| Combustion | Indirect injection |
| Cycle | 4 stroke |
| Compression ratio | 22:6 |
| Cooling System | Water cooled |
| Displacement | 3.318L |
| Lube oil capacity | 13.2 L (max) |
| Coolant capacity | 13.2 L |
| Standard governor | Mechanical +/-5% (Electronic) |
| Engine Speed | 1500 rpm |
| Fuel Consumption (L/h) | 100%: 7.15 | 75%: 5.37 | 50%: 3.58 | 25%: 1.79 |
| Radiator Cooling Air Flow | 1.19 m3/s |
| Emissions regulations | EU Stage IIIA |
| Exhaust temperature (max) | 500 °C |
| Max exhaust gas flow | 6.63 m3/min |
| Max. allowed back pressure | 7.1 |
Performance data validity:
- Diesel fuel per BS2869 Class A2 or equivalent.
- Lubricating oil per SAE 15W-40 API CI4.
- Coolant: 50% antifreeze / 50% fresh water.
Alternator Technical Data
| Make & Model | Leroy Somer TAL042F |
|---|---|
| Frequency / Poles | 50 Hz / 4P |
| Ingress protection | IP23 |
| Insulation class | H |
| Terminals (Optional) | 6 (12) |
| Excitation system | SHUNT |
| Winding pitch | 2/3 |
| AVR model | R120 |
| Overspeed | 2250 rpm |
| Voltage regulation | ± 1% |
| Cooling air flow | 0.1 m3/s |
Certification
- Complete generating set type-tested to ISO 8528-8.
- The control panel is certified by an ISO 17025 accredited laboratory to have IP55 according to
IEC 60355
Control Panel Specifications
GMP260MK (DSE6110 MKIII): Automatic start panel; microprocessor-based with CAN-bus J1939 engine interface.
Fully configurable via front fascia buttons and PC software. For mains monitoring, DSE6120 MKIII is available.
Circuit Breaker: Schneider or ABB, 3-Pole MCB (4-Pole optional)
Construction
| Sheet Fabrication | CNC shearing & bending |
|---|---|
| Paint type | Heat-treated powder-coated |
| Paint application | Electrostatic corona spraying |
| Durability tests |
|
| Compliance |
|
| Degree of protection | IP55 |
| Wire crimping |
|
| Wire coding |
|
Panel Functions Matrix
| Protection (standard) | (Optional) | Control (standard) | (Optional) | Instrumentation (standard) | (Optional) |
|---|---|---|---|---|---|
| Over/Under AC Voltage | High Oil Temperature | Remote Start Input | Battery Charger: 5A, 10A, UL | Gen AC Voltage: 3ph VLL & VLN | Lube Oil Temperature |
| Over/Under Frequency | High Exhaust Temperature | Emergency Stop Button | Fuel Pump Control | Gen Frequency: Hz | Exhaust Temperature |
| Delayed Over Current | Low Fuel Pressure | Common Alarm Volt-Free Contact | Extension: Ethernet-Modbus TCP | Gen Current: 3 phase A | Engine Inlet Air (Boost) Pressure |
| Short-circuit | Low Coolant Pressure | Event Log (100 Events) | RS485 – Modbus RTU | Power: kW, kVA, kVAr & PF | Charging Ammeter |
| Over kW | Low Fuel Level | Weekly Exerciser | GPS Tracker | Energy: kW·h, kVA·h, kVAr·h | Fuel Pressure |
| High Engine Temperature | Low Oil Level | Audible Alarm | Water in Fuel Detection | Lube Oil Pressure | Coolant Pressure |
| Low Oil Pressure | High Winding Temperature | Standard CANbus J1939 | Webnet Applications | Engine Coolant Temperature | Fuel Level |
| Maintenance Alarm | High Bearing Temperature | Pre/Post Heat Control | SNMP Gateway | Battery DC Voltage | Lube Oil Level |
| High/Low Battery Voltage | Low Boost Pressure | Data Logging | Inputs: 20 mA, 10 V | DC Alternator | Winding Temperature 3×RTD |
| Low Coolant Level (Note 2) | Fusible Link Fire Protection | PLC Editor | Thermocouples | Engine Speed | Bearing Temperature RTD |
| 3-ph Mains Sensing (6120) | Low Coolant Temperature | Oil Level Control | — | Operating Hours | Tier 4 Support |
Note 1: Some optional features may be standard if CANbus is established within electronic engines.
Note 2: Low coolant level protection is standard for gensets above 200 kVA; otherwise, optional.
Note 3: There is a limitation in the number of protections and measurements that can be offered with GMP260MK. Other control panels/modules can be offered per specification (DSE 7310/20, 7410/20, 8610, 8810, etc.).
Genset Standard Features
Assembly: Gensets are assembled at Ghaddar Machinery Factory in compliance with ISO 8528.
Fabrication:
- Engine/alternator assembly rests on skid with anti-vibration mounting pads.
- Skid made of durable sheet metals and beams exceeding vibration & torsion resistance norms.
- Skid-mounted fuel tank with gauge, filler cap, inlet and outlet hoses.
- Control panel enclosure made of reliable sheet metal.
Paint:
- Skid and panel enclosure painted with heat-treated, powder-coated electrostatic corona spraying.
- Durability tests passed:
- Impact (EN ISO 6272)
- Salt Spray Resistance (ASTM B117-73)
- Humidity Resistance (ASTM D2247)
Works-Testing:
- All gensets tested prior to dispatch.
- Test auto-generated and checked according to ISO 8528.
- Certificate issued for each genset.
Equipment:
- Water-cooled radiator with belt-driven blower fan and full guarding
- Electric starter with solenoid relay
- Battery charging alternator
- Energized-to-run solenoid
- Replaceable fuel, oil and air filters
- Heavy-duty lead-acid battery with matching capacity (Amps & CCA)
- Industrial exhaust silencer – 16 dB noise reduction
- Integral fuel tank with 67 L capacity
Documentation:
- User Manual for operation, installation and maintenance
- Wiring diagram
- Test report
- Maintenance schedule
- Catalogues for Engine, Alternator & AVR
Genset Optional Features
- Manual & Automatic Transfer Switches
- Synchronizing & Totalizing Panels
- Fuel water separator
- Water jacket heater
- Oil heater
- Fuel heater
- Battery heater
- Anti-condensation Heater
- Air Shut-off Valve
- Oil Sampler
- Pre-lube Oil Pump
Shipping Dimensions (Open Set):
- Length: 1700 mm
- Width: 770 mm
- Height: 1250 mm
- Weight: 655 Kg
