ITEMS

UNIT

SPECIFICATIONS

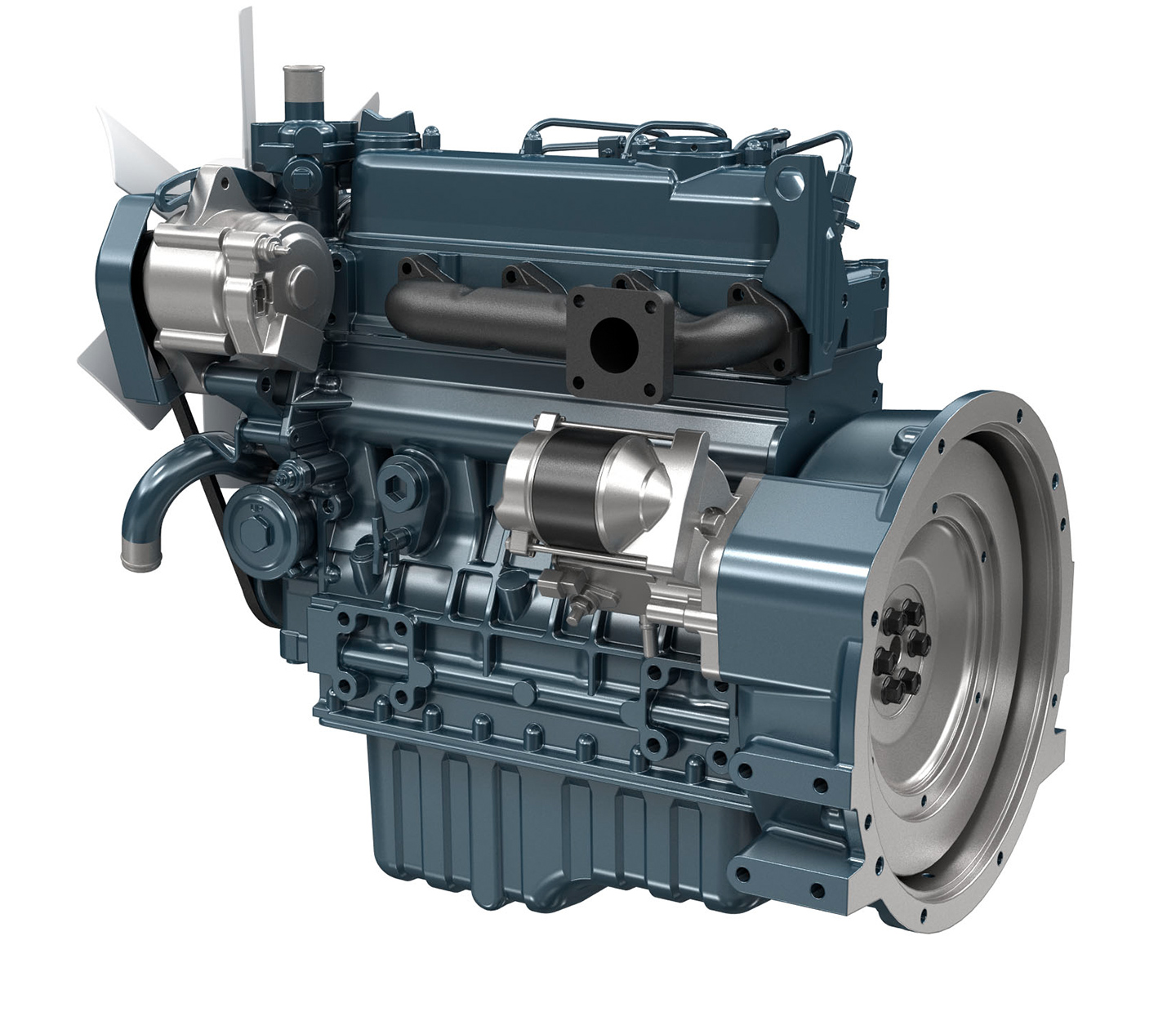

Engine Model

V1505-E2BG

Engine Code Number

1G964-14000

Type

Vertical, water-cooled, 4-cycle diesel engine

Number of cylinder

4

Cylinder Bore

mm

78

Stroke

mm

78.4

Combustion type

Spherical Type (E-TVCS)

Total Displacement

L

1.498

Brake Horse Power (Stand-by )

kW/rpm (PS/rpm)

12.5/1500(17.0/1500)

Brake Horse Power (Continuous )

kW/rpm (PS/rpm)

11.1/1500(15.1/1500)

Firing Order

1-3-4-2

Direction of Rotation

Counter-Clockwise (Viewed from Flywheel Side)

Injection Pump

Bosch Type

Fuel Injection Pressure

MPa (kgf/cm2)

13.73 (140)

Fuel Injection Timing

deg.

17.5 Before T.D.C (p)

Compression Ratio

24.0

Governor Type

All Speed Mechanical Governor

Fuel Oil

Diesel Fuel No.2-D(ASTMD975)

Starting System

Starter (with glow plug)

Starter Output

V-kW

12 – 1.2

Alternator Output

V-A

12 – 30

Cooling System

Pressurized Radiator, Forced Circulation with w ater pump

Lubricating System

Forced Lubricating by Trochoid Pump

Lubrication Oil

Class CF lubricating oil as per API classification is recommended

Lub.Oil Capacity

L

6.7

Dimensions (L x W x H)

mm

636.8×392.3×607.1

Intake Resistance

kPa(mmAq)

≦ 1.96 (200)

Back Pressure

kPa(mmHg)

≦ 7.07 (53)

Ho(Heat Rejection to coolant)

kcal/h

15,360

Combustion Air Requirements ( 25°C and 750mmHg)

m3/min

1.17

Exhaust Gas Volume ( 25°C and 750mmHg)

m3/min

2.84

Dry Weight

kg

Approx. 106
